Products

FLOATS & BUOY

E.V.A FLOAT


Horizontal Scrolling →

Horizontal Scrolling →



Horizontal Scrolling →

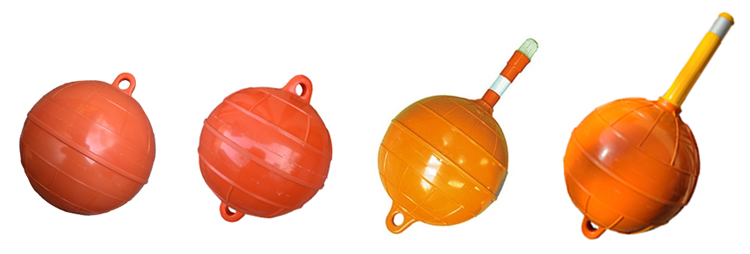

PLASTIC HARD FLOAT

- A TYPE: ONE LUG
- B TYPE: TWO LUGS
- C TYPE: ONE LUG + ONE SCREW

Horizontal Scrolling →


Horizontal Scrolling →

Hard float types are three - A) one lug, B) two lugs, C) one lug, one screw type

ITEMDIAWORING DEPTHWEIGHTBUOYANGE
HF 240A, B 240mm 280 m 1.2kg 6.00kg
HF 300A, B 300mm 280 m 2.2kg 11.90kg
HF 330A, B 330mm 280 m 3.2kg 15.70kg
HF 360A, B 360mm 280 m 3.9kg 20.30kg
HF 360C 360mm 280 m 3.9kg 20.30kg
HF 390A, B 390mm 280 m 4.5kg 26.00kg
TOP BUOY
(POLE+DISH)
- - 0.3kg -



Horizontal Scrolling →

BOTTOM TRAWL FLOAT
- The working depths are different depending on Dia

Horizontal Scrolling →


Horizontal Scrolling →



DIA(mm) 120, 150, 180, 210, 240, 270, 300, 360
WORKING DEPTH (mtr) 300, 500, 700, 800, 1100, 1200, 1500, 2000



Horizontal Scrolling →

MIDWATER TRAWL FLOAT

 - The working depths are different depending on Dia

Horizontal Scrolling →


Horizontal Scrolling →

Horizontal Scrolling →



DIA(mm)200, 240, 270, 360
WORKING DEPTH (mtr) 600, 800, 1100



Horizontal Scrolling →

AIR INFLATABLE BUOY

A SERIES



ITEM DIA X LENGTH (mm) EYE DIA
(mm)
BUOYANCY
(KG)*
A0 210 x 280 22  5.7/3.4
A1 295 x 380 22  13.0/7.8
A2 390 x 500 25  32.0/19.2
A3 460 x 575 28  52.0/31.2
A4 550 x 710 28  90.0/54.0
A5 710 x 940 28  215.0/129.0
A6 850 x 1120 35  405.0/243.0
A7 1100 x 1420 60  670.0/402.0

* Gross buoyance / Recommended maxium load



LC SERIES






ITEM

DIA X LENGTH (mm)

EYE DIA
(mm)

BUOYANCY
(KG)*

LD-1

 230 x 470

22

 12.0/7.5

LD-2

 300 x 620

22

 30.5/18.5

LD-3

 350 x 745

25

 51.0/30.5

LD-4

 400 x 950

28

 80.0/48.0

* Gross buoyance / Recommended maxium load




CC SERIES



ITEMDIA X LENGTH (mm)EYE DIA
(mm)
BUOYANCY
(KG)*
CC 2  385 x 430  48  29.0/17.5
CC 3  450 x 500  48  55.0/33.0
CC 4  540 x 590  48  100.0/66.0

* Gross buoyance / Recommended maxium load



F SERIES



ITEM DIA X LENGTH (mm) EYE DIA
(mm)
BUOYANCY
(KG)*
F3 220 X 745 28 22
F5 290 X 775 28 35
